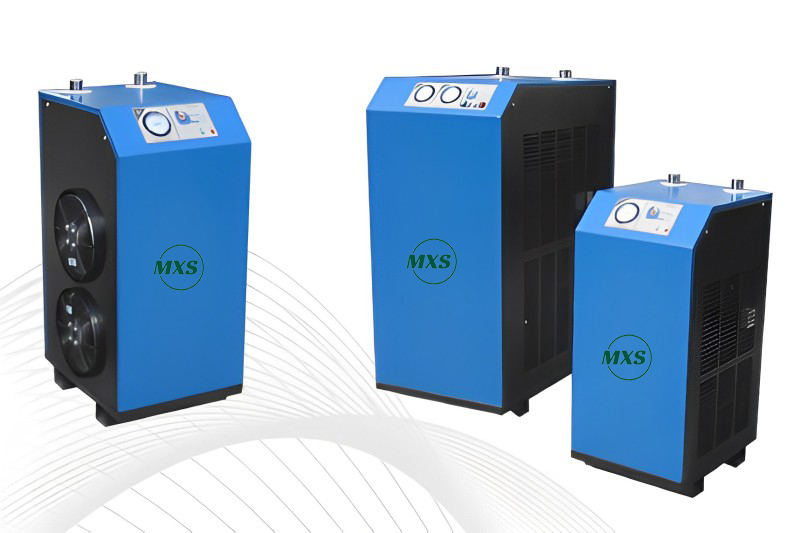

KD series Small air cold plate fin heat exchanger cold drying machine

KD series Small air cold plate fin heat exchanger cold drying machine
Update time : 2023-12-07

Product introduction

attachment

Plate heat exchanger Control panel drainer

Alarm B

Power supply fan drain overcurrent overheat alarm dew point display

Working condition

Maximum intake air temperature: 45℃/80℃
Maximum ambient temperature: 40℃
Maximum working pressure: 16bar
dew-point: 2-10℃
refrigerant: R22
voltage: 220V/1PH/50HZR

selectable

R407c refrigerant

Specific voltage

NPT接口

KDL series (maximum intake temperature 45℃) parameter table

Model number	Flow rate			Gross power	port	dimension（mm）			weight（kg）
Model number	M3/min	M3/h	CFM	Gross power	port	L	W	H	weight（kg）
KDL-5F	0.7	42	25	0.45	1/2"	500	415	640	30
KDL-10F	1.6	96	56	0.47	1"	500	415	680	45
KDL-20F	2.6	156	92	0.85	1"	630	450	790	50
KDL-30F	3.8	228	134	1.04	1"	630	450	790	55
KDL-50F	6	360	212	1.65	1 1/2"	770	530	890	70
KDL-60F	7	420	247	1.65	1 1/2"	820	530	890	80
KDL-75F	8.5	510	300	1.67	1 1/2"	870	580	890	90
KDL-100F	11.5	690	406	2.05	2"	1180	580	870	120
KDL-120F	13.5	810	476	2.3	2"	950	730	1130	140

KDH Series (Max working pressure 80C)

Model number	Flow rate			Gross power	port	dimension（mm）			weight（kg）
Model number	M3/min	M3/h	CFM	Gross power	port	L	W	H	weight（kg）
KDH-5F	0.7	42	25	0.47	1/2"	500	415	830	35
KDH-10F	1.6	96	56	0.53	1"	500	415	880	50
KDH-20F	2.6	156	92	0.95	1"	630	450	1010	55
KDH-30F	3.8	228	134	1.16	1"	630	450	1010	60
KDH-50F	6	360	212	1.65	1 1/2"	770	530	1070	70
KDH-60F	7	420	247	1.65	1 1/2"	820	530	1070	85
KDH-75F	8.5	510	300	1.8	1 1/2"	870	580	1180	110
KDH-100F	11.5	690	406	2.3	2"	1180	580	1190	150
KDH-120F	13.5	810	476	2.52	2"	1250	730	1230	190
