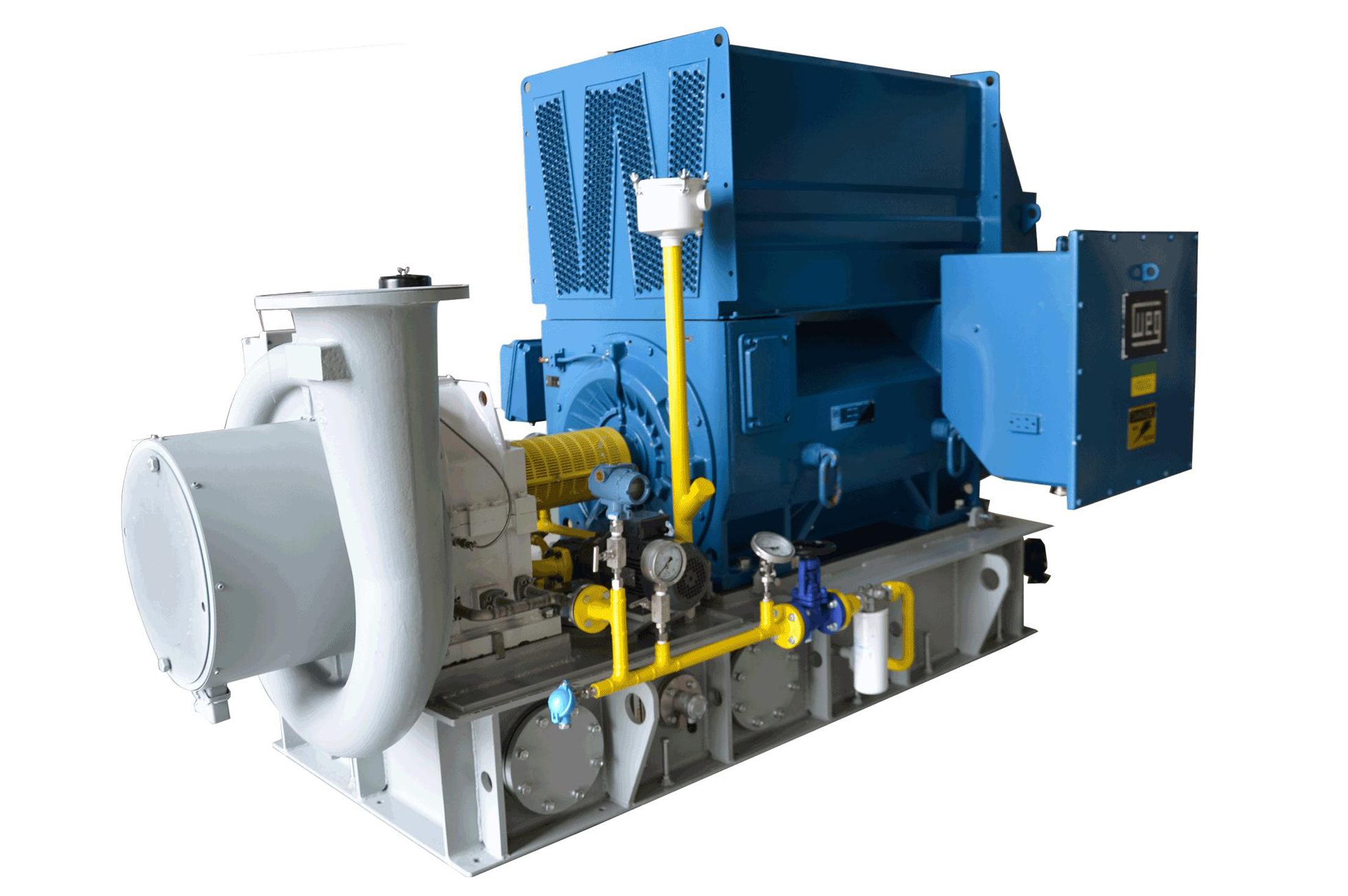

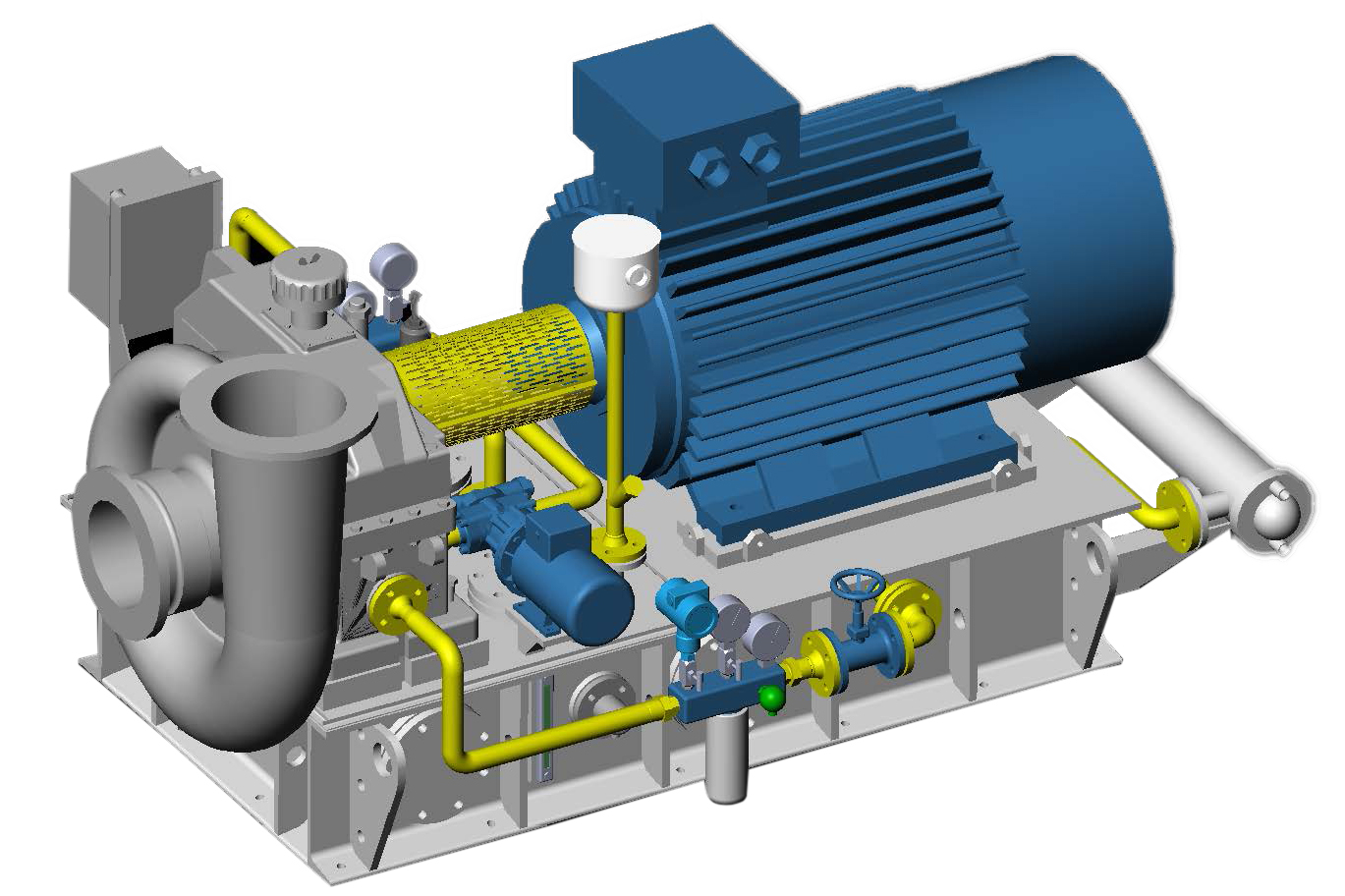

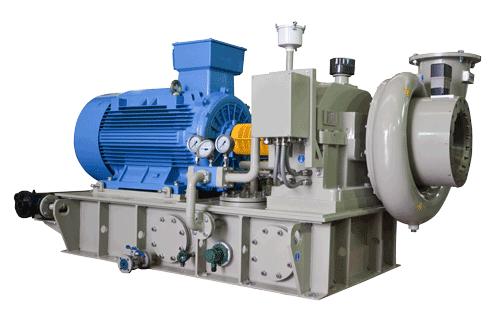

Single-stage centrifugal blower

Product range：

Flow rate 2000 m³/h 至 250 000 m³/h

Single stage pressure to 1.8barg

Two-stage pressure to 4barg

Single-stage centrifugal blower, the introduction of international advanced fluid machinery design and calculation software, through simulation optimization to obtain efficient impeller and volute flow channel, and high reliability of the gearbox assembly together, while the use of inlet guide vane IGV and adjustable outlet guide vane DGV to adjust the flow and pressure, so that the fan in the flow of 45% to 100% of the working range of smooth operation without surge.

Product characteristics：

Three-way flow high efficiency impeller, efficiency up to 95%.

The gear box is designed and manufactured according to AGMA standard, and the box is divided horizontally for easy installation and maintenance.

The inlet guide vane regulates the flow rate, the pressure loss is small, and the adjustment range is wide.

The metal antimony element is added to the shaft seal carbon ring, which increases the ductility and delays the service life.

The volute is connected with the half flange of the gear box, and the working state of the oil seal and the gas seal are visible.

Truly deliver oil-free air.

Flexible design, adapt to different working conditions.

Integral skid mounted structure, easy to install and transport.

Intelligent control system monitors the running status of the fan in real time, adjusts the flow pressure on demand in time, and integrates anti-surge system to ensure safe and stable operation.
